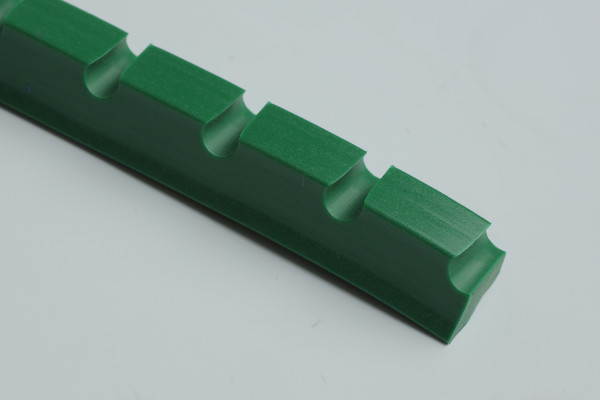

Guides



TypeMaterialSize (mm)ColorMin DiameterHardness Shore A
top (mm)bottom (mm)
K6PVC6X4 GreenWhite403060
K8PVC8X5GreenWhite504060
K10PVC10X6GreenWhite706060
K13PVC13X8GreenWhite1008060
K17PVC17X11GreenWhite1109060
TypeMaterialSize (mm)ColorMin DiameterHardness Shore A
top (mm)bottom (mm)
K6PU6X4 Transparent403060
K8PU8X5Transparent504060
K10PU10X6Transparent706060
K13PU13X8Transparent1008060

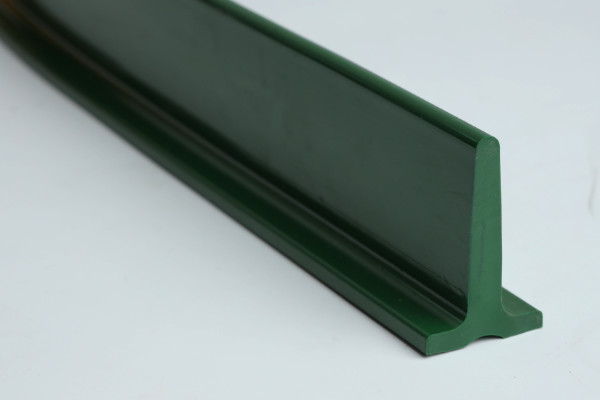

 Cleats



TypeMaterialSize (mm)ColorMin Diameter (mm)Hardness Shore A
T20PVC20X20 GreenWhite9060
T30PVC25X30GreenWhite12060
T40PVC25X40GreenWhite12060
T50PVC25X50GreenWhite12060

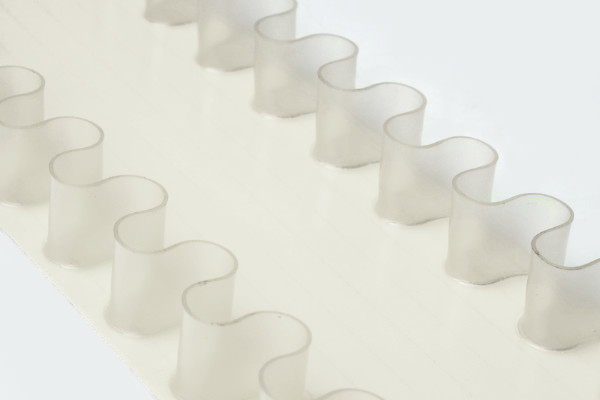

 Sidewall



TypeMaterialHeight (mm)ColorSizeMin. PulleyHardness Shore A
Width (mm)Pitch (mm)
K6PVC30GreenWhite40506060
K8PVC40GreenWhite40508060
K10PVC50GreenWhite405010060
K13PVC60GreenWhite405012060

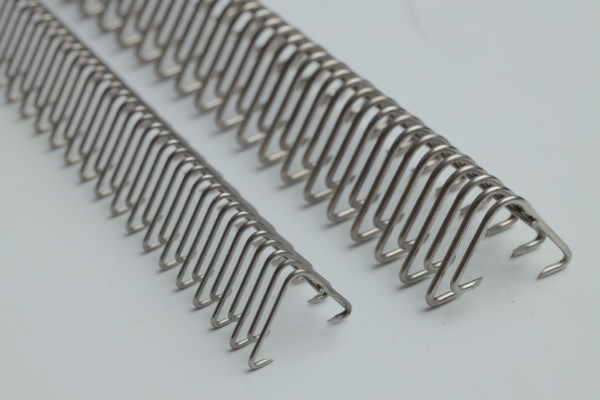

Clipper



A4-S-600
Belt Thickness Range5.0-6.5 mm
(min. pulley diameter 100 mm)
Type of FastenerBelt hook welded
MaterialStainless Steel AISI 430
Wire Diameter1.38 mm
Pitch3.67 mm
Strip Lengthapprox. 600 mm
A6-S-600
Belt Thickness Range8.0-9.0 mm
(min. pulley diameter 150 mm)
Type of FastenerBelt hook welded
MaterialStainless Steel AISI 430
Wire Diameter1.38 mm
Pitch3.67 mm
Strip Lengthapprox. 600 mm
A40LLSP-S-600
Hook GeometryLong Legs,Short Points
Belt Thickness Range2.0-3.0 mm
(min. pulley diameter 75 mm)
Type of FastenerBelt Hooks , welded on a cross wire
MaterialStainless Steel AISI 430
Wire Diameter1.00 mm
Pitch3.175 mm
Strip Lengthapprox. 600 mm
