Belt Conveyor

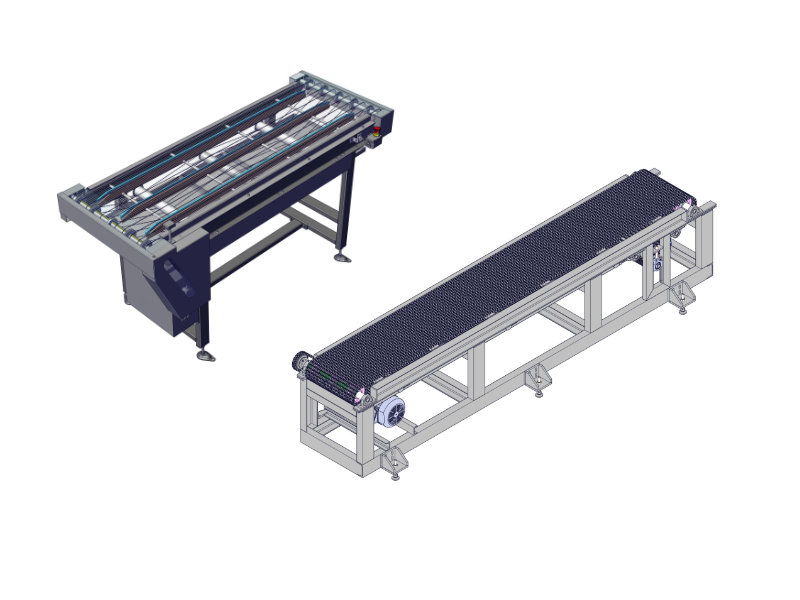

B1) Mesh Belt Conveyor
Roller Drum diameter80mm – 300mm diameter
Framefully jig welded 'C' section framework. 64x32/76x32/100x40/178x32

available in stainless steel, steel A36 and aluminium.
Usable widths300 mm to 600 mm
StandsOnly with conveyor frame
Load capacityto 30 kg, depending on radius, speed and product
Drive locationbelow
Drive and speed5 to 30 m/min (other speeds available).

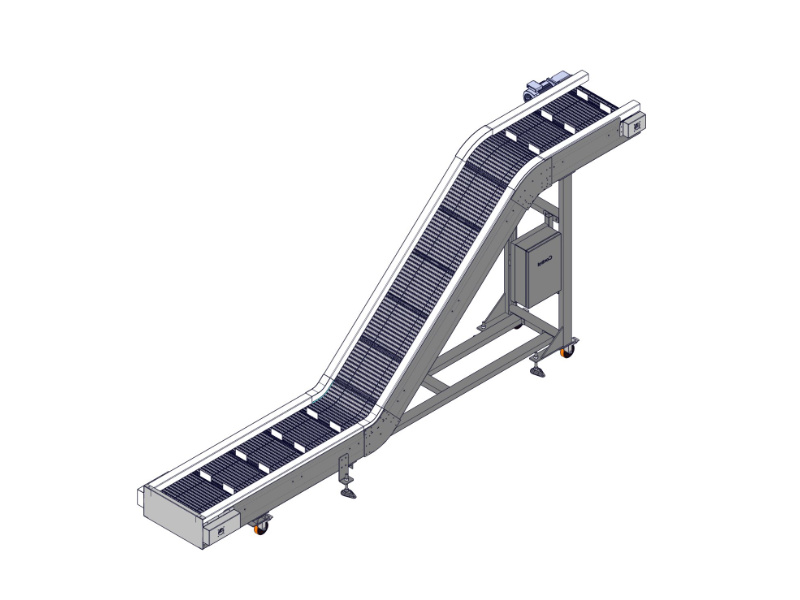

B2) Modular Belt Conveyor
Roller Drum diameter80mm – 300mm diameter
Framefully jig welded 'C' section framework. 64x32/76x32/100x40/178x32

available in stainless steel, steel A36 and aluminium.
Usable widths300 mm to 600 mm
StandsOnly with conveyor frame
Load capacityto 30 kg, depending on radius, speed and product
Drive locationbelow
Drive and speed5 to 30 m/min (other speeds available).

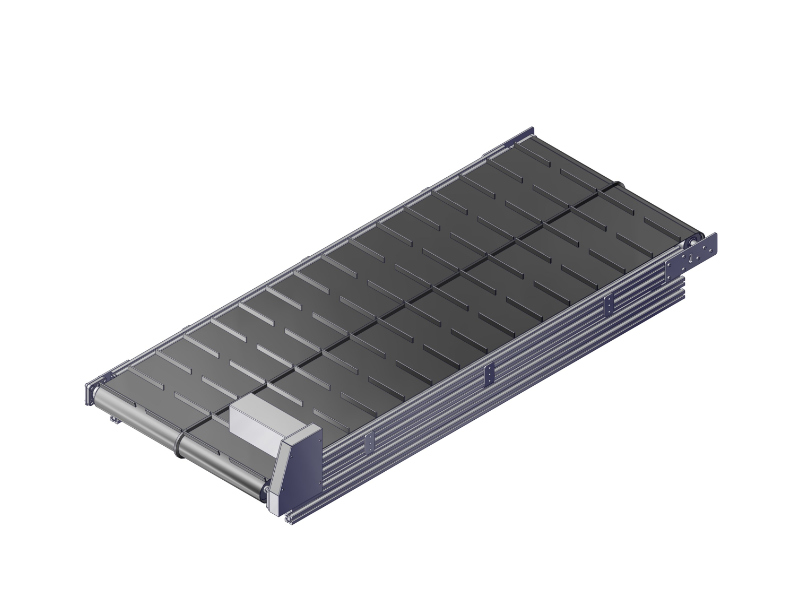

B3) GV1 Flat Belt Conveyor
Roller Drum diameter80mm – 300mm diameter
Framefully jig welded 'C' section framework. 64x32/76x32/100x40/178x32

available in stainless steel, steel A36 and aluminium.
Usable widths300 mm to 1500 mm
StandsOnly with conveyor frame
Load capacityto 30 kg, depending on radius, speed and product
Drive locationbelow
Drive and speed5 to 30 m/min (other speeds available).

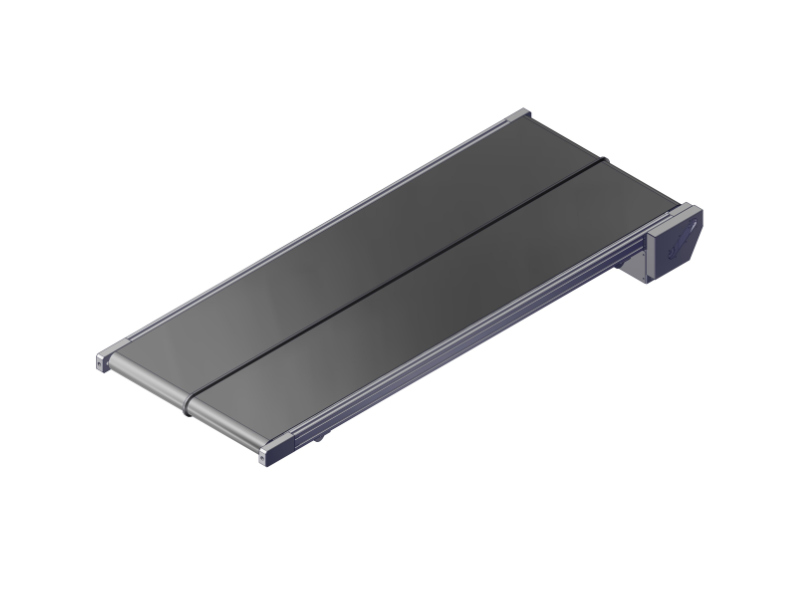

B4) GV2 Flat Belt Conveyor
Roller Drum diameter80mm – 300mm diameter
Framefully jig welded 'C' section framework. 64x32/76x32/100x40/178x32

available in stainless steel, steel A36 and aluminium.
Usable widths300 mm to 1500 mm
StandsOnly with conveyor frame
Load capacityto 30 kg, depending on radius, speed and product
Drive locationbelow
Drive and speed5 to 30 m/min (other speeds available).

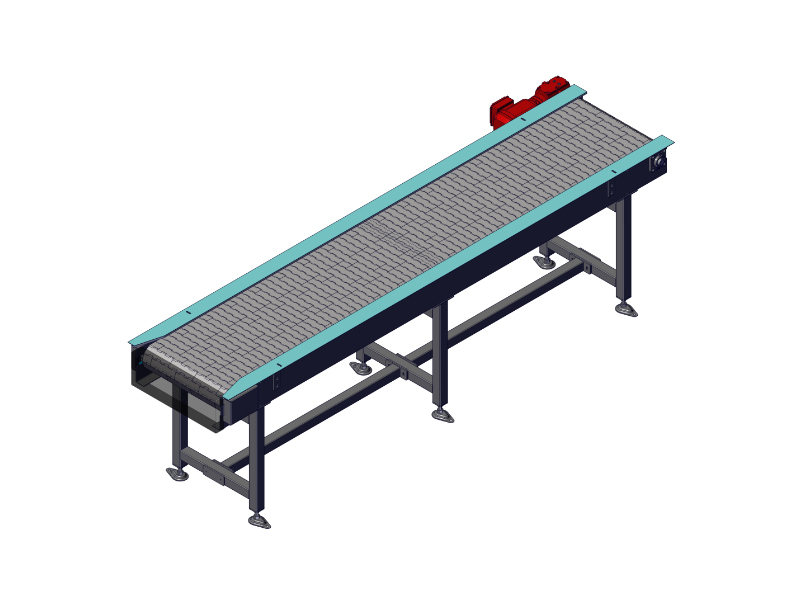

B5) Slat Belt Conveyor
Roller Drum diameter80mm – 300mm diameter
Framefully jig welded 'C' section framework. 64x32/76x32/100x40/178x32

available in stainless steel, steel A36 and aluminium.
Usable widths300 mm to 1500 mm
StandsOnly with conveyor frame
Load capacityto 30 kg, depending on radius, speed and product
Drive locationbelow
Drive and speed5 to 30 m/min (other speeds available).
B6) Curve Belt Conveyor
Roller Drum diameter35mm – 80mm diameter
Framefully jig welded 'C' section framework. 64x32/76x32/100x40/178x32

available in stainless steel, steel A36 and aluminium.
Conveyor angle45°, 90°,135° and 180°, others on request
Usable widths300 mm to 600 mm
StandsOnly with conveyor frame
Load capacityto 30 kg, depending on radius, speed and product
Drive locationbelow
Drive and speed5 to 30 m/min (other speeds available).

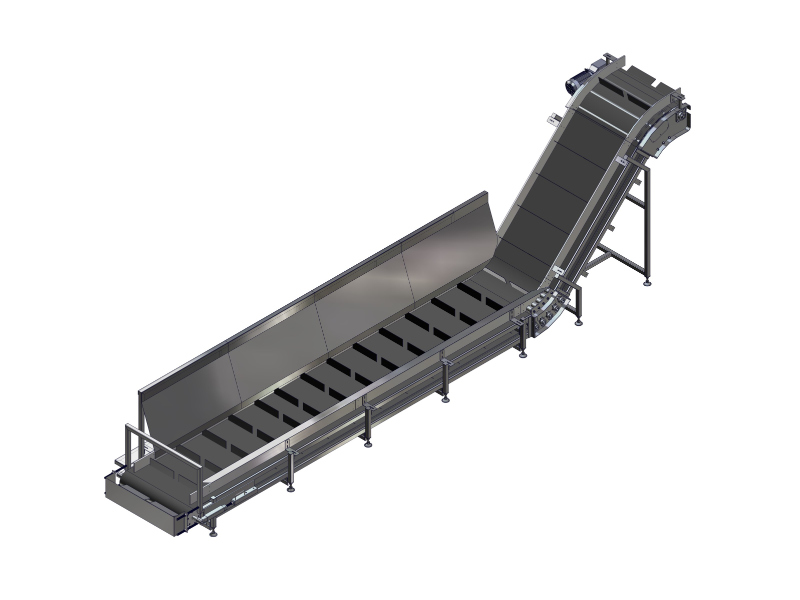

B7) Z-belt Conveyor
Roller Drum diameter80mm – 300mm diameter
Framefully jig welded 'C' section framework. 64x32/76x32/100x40/178x32

available in stainless steel, steel A36 and aluminium.
Usable widths300 mm to 1500 mm
StandsOnly with conveyor frame
Load capacityto 30 kg, depending on radius, speed and product
Drive locationbelow
Drive and speed5 to 30 m/min (other speeds available).

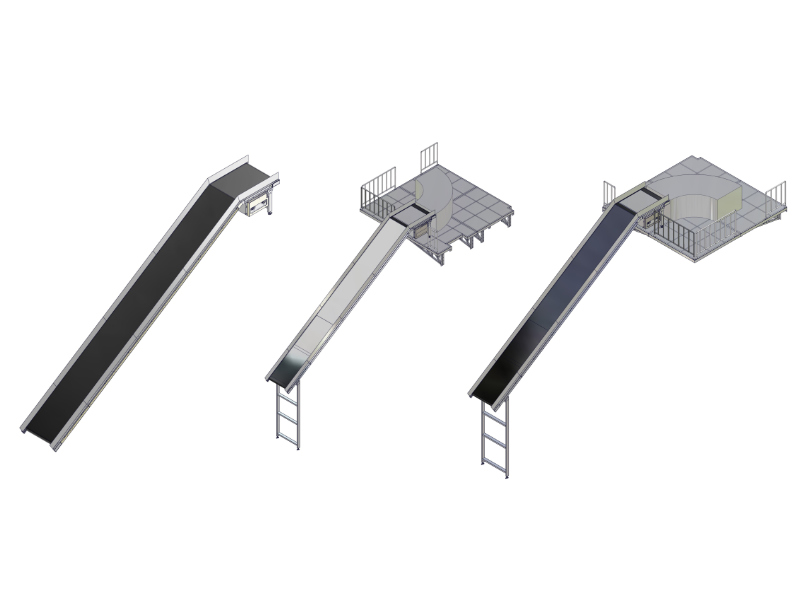

B8) Incline Belt Conveyor
Roller Drum diameter80mm – 300mm diameter
Framefully jig welded 'C' section framework. 64x32/76x32/100x40/178x32

available in stainless steel, steel A36 and aluminium.
Usable widths300 mm to 1500 mm
StandsOnly with conveyor frame
Load capacityto 30 kg, depending on radius, speed and product
Drive locationbelow
Drive and speed5 to 30 m/min (other speeds available).

สอบถามข้อมูลเพิ่มเติม : (02) 312-2978-80
