Chain Conveyor

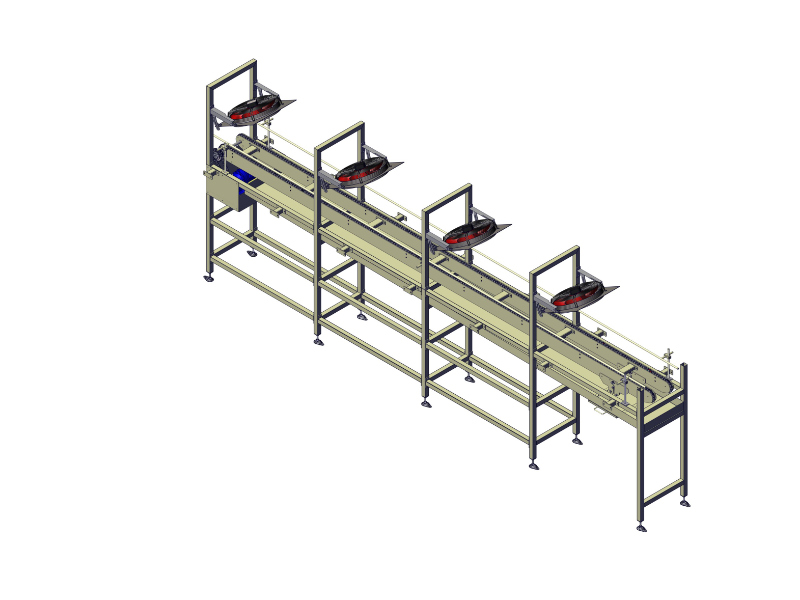

C1) Chain Conveyor
| Roller Drum diameter | 80mm – 300mm diameter |
| Frame | fully jig welded 'C' section framework. 64x32/76x32/100x40/178x32 available in stainless steel, steel A36 and aluminium. |
| Usable widths | 300 mm to 1500 mm |
| Stands | Only with conveyor frame |
| Load capacity | to 30 kg, depending on radius, speed and product |
| Drive location | below |
| Drive and speed | 5 to 30 m/min (other speeds available). |

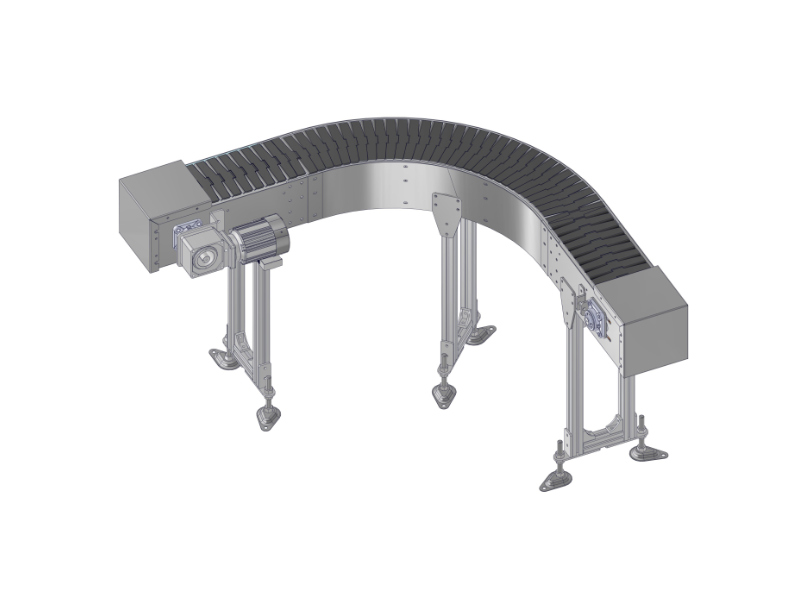

C2) 90o - Top Chain Conveyor
| Roller Drum diameter | 80mm – 300mm diameter |
| Frame | fully jig welded 'C' section framework. 64x32/76x32/100x40/178x32 available in stainless steel, steel A36 and aluminium. |
| Usable widths | 300 mm to 1500 mm |
| Stands | Only with conveyor frame |
| Load capacity | to 30 kg, depending on radius, speed and product |
| Drive location | below |
| Drive and speed | 5 to 30 m/min (other speeds available). |

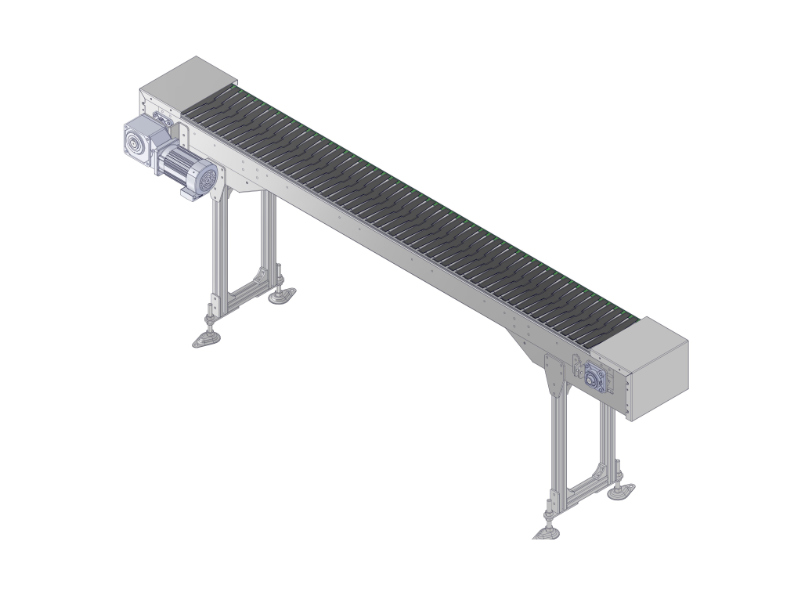

C3) H - Top Chain Conveyor
| Roller Drum diameter | 80mm – 300mm diameter |
| Frame | fully jig welded 'C' section framework. 64x32/76x32/100x40/178x32 available in stainless steel, steel A36 and aluminium. |
| Usable widths | 300 mm to 1500 mm |
| Stands | Only with conveyor frame |
| Load capacity | to 30 kg, depending on radius, speed and product |
| Drive location | below |
| Drive and speed | 5 to 30 m/min (other speeds available). |

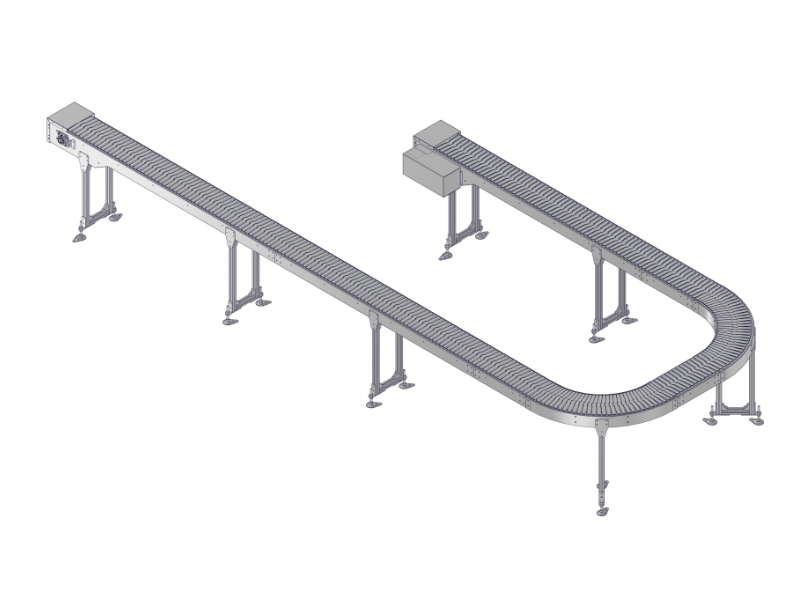

C4) U - Top Chain Conveyor
| Roller Drum diameter | 80mm – 300mm diameter |
| Frame | fully jig welded 'C' section framework. 64x32/76x32/100x40/178x32 available in stainless steel, steel A36 and aluminium. |
| Usable widths | 300 mm to 1500 mm |
| Stands | Only with conveyor frame |
| Load capacity | to 30 kg, depending on radius, speed and product |
| Drive location | below |
| Drive and speed | 5 to 30 m/min (other speeds available). |
