Modular Belt

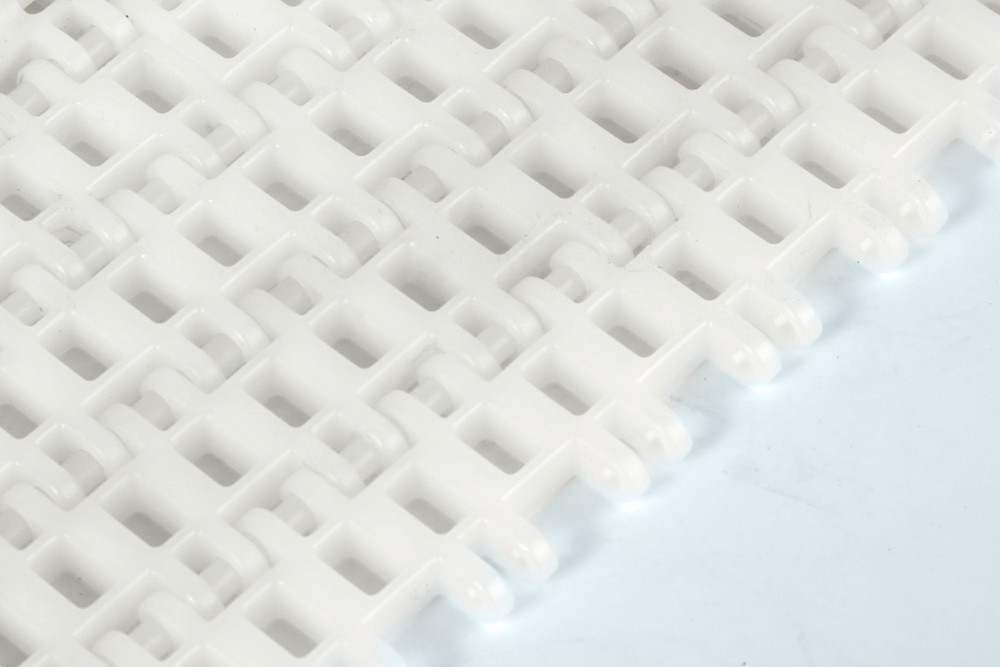

S. 25-400
Belt Data
| Belt Data | ||
|---|---|---|
| Materials | Max.belt pull Kg/m of width | Belt weight Kg/m2 |
| Polyethylene (PE) | 630 | 5 |
| Polypropylene (PP) | 1060 | 5 |
| Polyacetal (POM) | 1500 | 7 |
Data
| Belt surface | Open belt with a smooth surface. |
| Open area | 29%. Biggest opening 6x10 mm. |
| Strength | Ideal for medium weight transportation |
| Material/colour | PE/nat, PP/white and grey. POM/blue |
| Cleanability | Excellent. FSIS |
| Accessories | 3,25 and 50 mm flights. 25 and 50 mm sideguards. The 3, 25 and 50 mm Flights and standard modules can be supplied in a special highfriction Material |
| Application | Seafood, red meat, vegetables, bakery and food industry in general. Even cooling/freezing and washing |
| Width interval | 12,5 mm. E.g.: 100 mm, 112,5 mm,125 mm etc. |

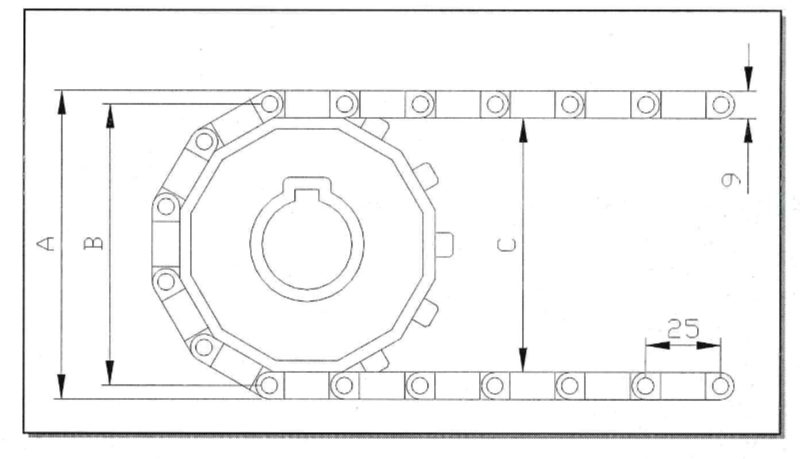

Sprocket Data
| Sprocket data | |||
| No.of teeth Z | A= Outside diameter (mm) | B= Pitch diameter (mm) | C= Inside diameter (mm) |
| 6 | 54 | 45 | 36 |
| 8 | 70 | 61 | 52 |
| 12 | 104 | 95 | 86 |
| 20 | 109 | 160 | 151 |
Hub Specifications
| Hub specifications | ||||
| Hub width 20 mm. | No. of teeth | |||
| 6Z | 8Z | 12Z | 20Z | |
| Square bore mm. | 25x25 | 25x25 | 25x25 | |
| 40x40 | 40x40 | |||
| 60x60 | ||||
| Hexagon bor mm. | 24x24x24 | |||
| Round bore mm. | ϕ20 | ϕ20 | ϕ20 | |
| ϕ25 | ϕ25 | ϕ25 | ||
| ϕ30 | ϕ30 | |||
| ϕ40 | ϕ40 | |||

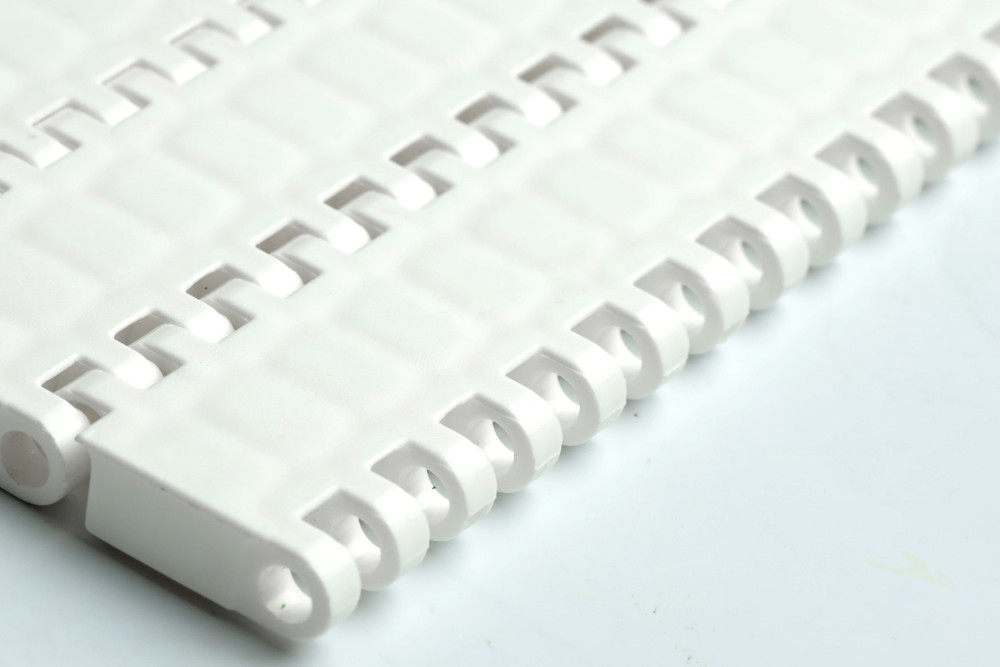

S. 25-408
Belt Data
| Belt Data | ||
|---|---|---|
| Materials | Max.belt pull Kg/m of width | Belt weight Kg/m2 |
| Polyethylene (PE) | 800 | 6 |
| Polypropylene (PP) | 1200 | 6 |
| Polyacetal (POM) | 2000 | 8.5 |
Data
| Belt surface | Flat top. |
| Open area | Closed. |
| Strength | Strongest belt in the S.25 series. Ideal for medium weight transportation. |
| Material/colour | PE/nat, PP/white and grey. POM/blue |
| Cleanability | Good. |
| Accessories | 3,25 and 50 mm flights. 25 and 50 mm sideguards. |
| Application | Transport of small products such as machine components. Vulcanising belt for the rubber industry |
| Width interval | 10 mm. E.g.: 100 mm, 110 mm,1200 mm etc. |

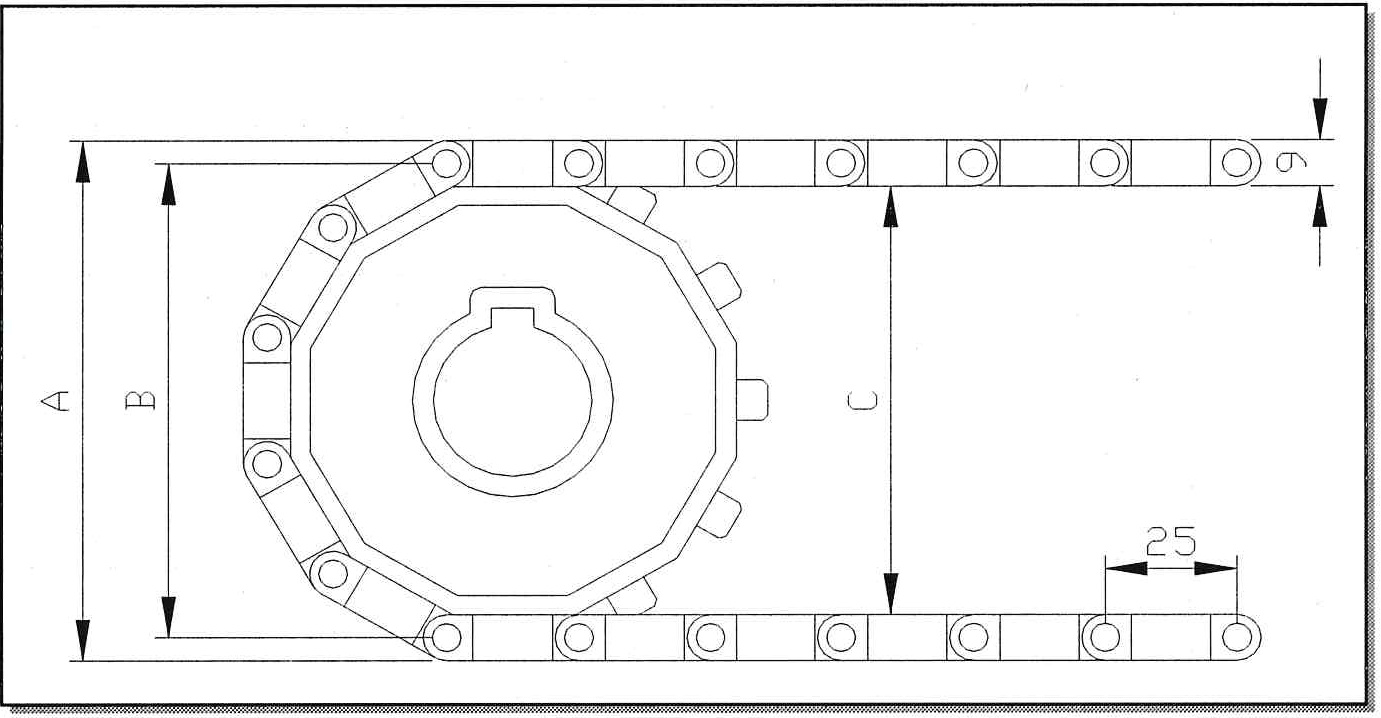

Sprocket Data
| Sprocket data | |||
| No.of teeth Z | A= Outside diameter (mm) | B= Pitch diameter (mm) | C= Inside diameter (mm) |
| 6 | 54 | 45 | 36 |
| 8 | 70 | 61 | 52 |
| 12 | 104 | 95 | 86 |
| 20 | 109 | 160 | 151 |
Hub Specifications
| Hub specifications | ||||
| Hub width 20 mm. | No. of teeth | |||
| 6Z | 8Z | 12Z | 20Z | |
| Square bore mm. | 25x25 | 25x25 | 25x25 | |
| 40x40 | 40x40 | |||
| 60x60 | ||||
| Hexagon bor mm. | 24x24x24 | |||
| Round bore mm. | ϕ20 | ϕ20 | ϕ20 | |
| ϕ25 | ϕ25 | ϕ25 | ||
| ϕ30 | ϕ30 | |||
| ϕ40 | ϕ40 | |||
Sprocket
| Type | Material | Size (mm) | Color | No.of Teeth | Shaft Diameter (mm) |
| 12T | Nylon PA6 | 25x85 | Natural | 12 | 25 |
| 25T | Nylon PA6 | 30x85 | Natural | 25 | 30 |

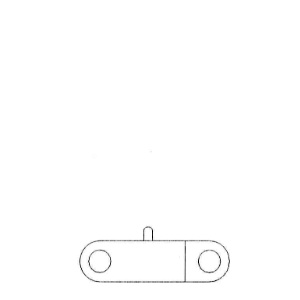

Accessories S.25.400-408

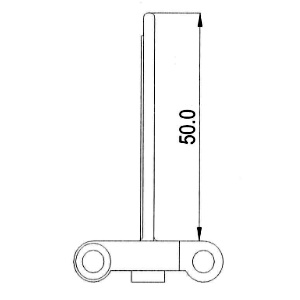

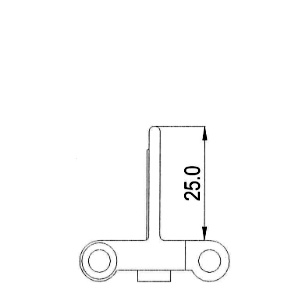

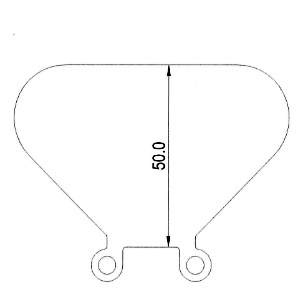

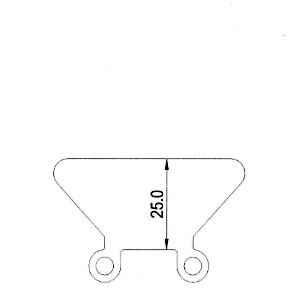

3mm. flight.
Standard heights
on flights.
on flights.
Standard heights
on flights.
on flights.
