Roller Conveyor

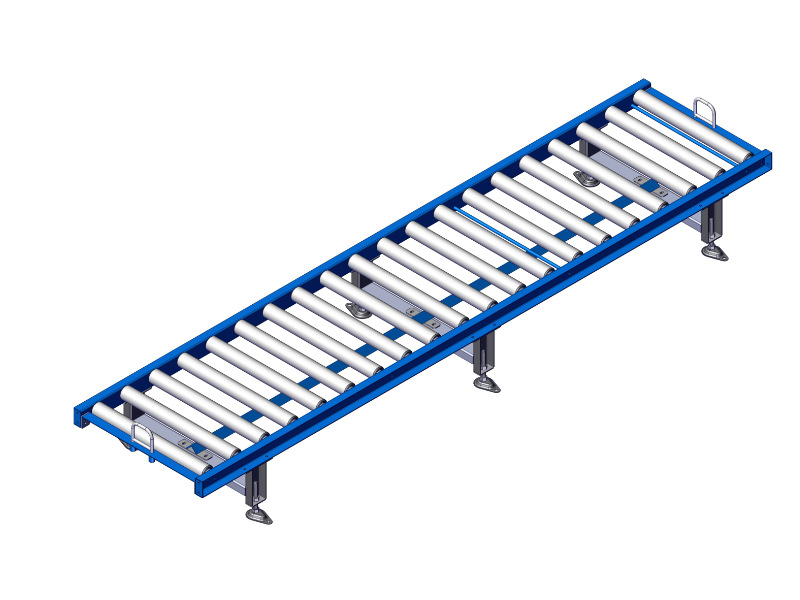

R1) Drive and Free Roller
| Standard widths | 312 – 1012 mm (50mm increments) |
| Static load per roller | 20 kg – 150 kg |
| Roller Type | Roller tubes are zinc plated as standard or plastic rollers are also available |
| Speed | 0.1 m/s – 0.5 m/s (other speeds available). |
| Stands | Only with conveyor frame |
| Load capacity | depending on frame width and roller type to 150 kg |
| Frame | fully jig welded 'C' section framework. 64x32/76x32/100x40/178x32 available in stainless steel, steel A36 and aluminium. |

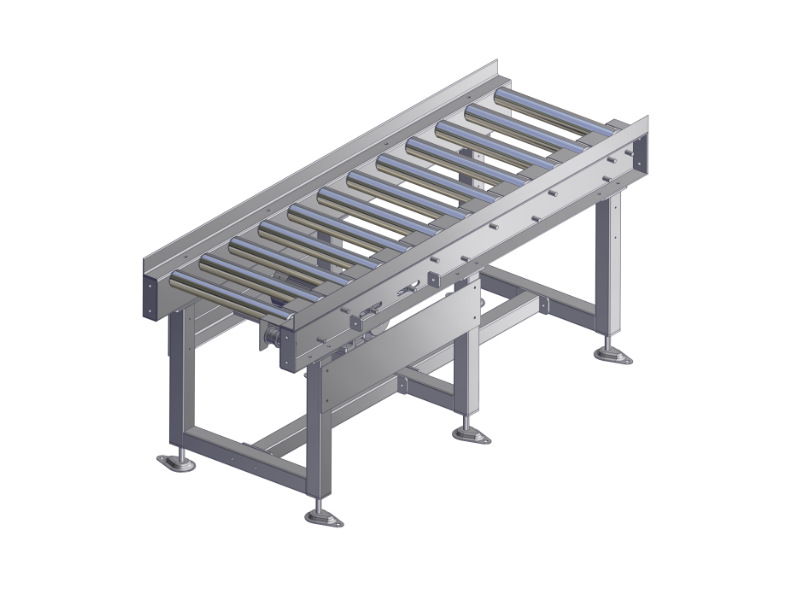

R2) Accumulation Roller Conveyor
| Standard widths | 312 – 1012 mm (50mm increments) |
| Static load per roller | 20 kg – 150 kg |
| Roller Type | Roller tubes are zinc plated as standard or plastic rollers are also available |
| Speed | 0.1 m/s – 0.5 m/s (other speeds available). |
| Stands | Only with conveyor frame |
| Load capacity | depending on frame width and roller type to 150 kg |
| Frame | fully jig welded 'C' section framework. 64x32/76x32/100x40/178x32 available in stainless steel, steel A36 and aluminium. |

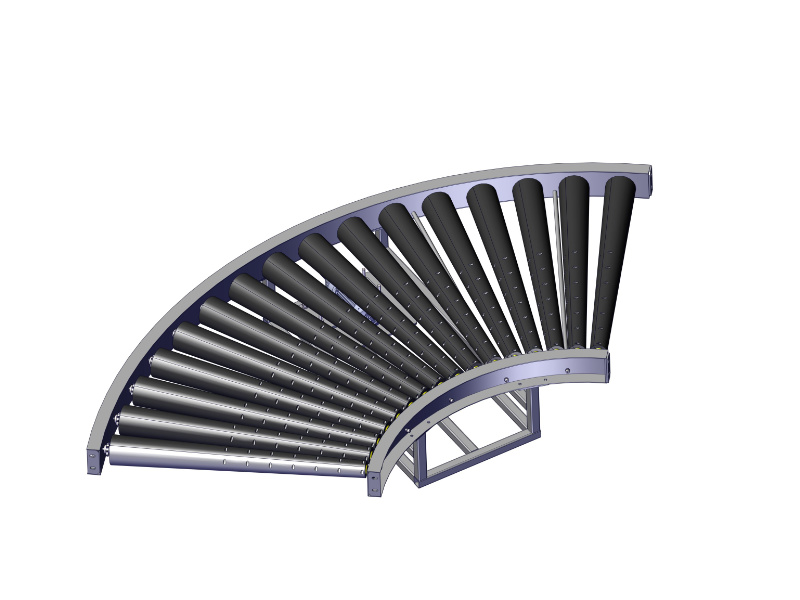

R3) Curve Roller (Non and Powered)
| Usable widths | 330mm – 1000mm |
| Roller diameter | 35mm – 60mm diameter |
| Frame | fully jig welded 'C' section framework. 64x32/76x32/100x40/178x32 available in stainless steel, steel A36 and aluminium. |
| Conveyor angle | 45°, 90°,135° and 180°, others on request |
| Roller Type | Roller tubes are zinc plated as standard or plastic rollers are also available |
| Roller Covers | Standard roller is galvanized steel. Optional polyurethane sleeves available. |
| Stands | Only with conveyor frame |
| Load capacity | to 30 kg, depending on radius, speed and product |
| Drive location | below |
| Drive and speed | 5 to 30 m/min (other speeds available). |
R4) Sorter Conveyor
| Roller diameter | 35mm – 60mm diameter |
| Frame | fully jig welded 'C' section framework. 64x32/76x32/100x40/178x32 available in stainless steel, steel A36 and aluminium. |
| Turn angle | 2 and 3 ways (45° left and right), others on request |
| Usable widths | 300 mm to 600 mm |
| Stands | Only with conveyor frame |
| Load capacity | to 30 kg, depending on radius, speed and product |
| Drive location | below |
| Drive and speed | 5 to 30 m/min (other speeds available). |

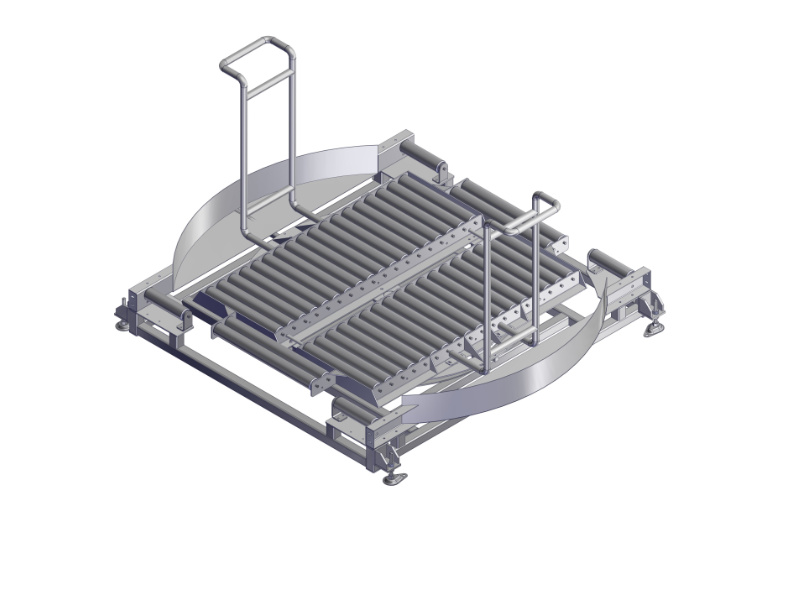

R5) Roller Turn Table
| Roller Drum diameter | 80mm – 300mm diameter |
| Frame | fully jig welded 'C' section framework. 64x32/76x32/100x40/178x32 available in stainless steel, steel A36 and aluminium. |
| Usable widths | 300 mm to 600 mm |
| Stands | Only with conveyor frame |
| Load capacity | to 30 kg, depending on radius, speed and product |
| Drive location | below |
| Drive and speed | 5 to 30 m/min (other speeds available). |
