Timing Belt

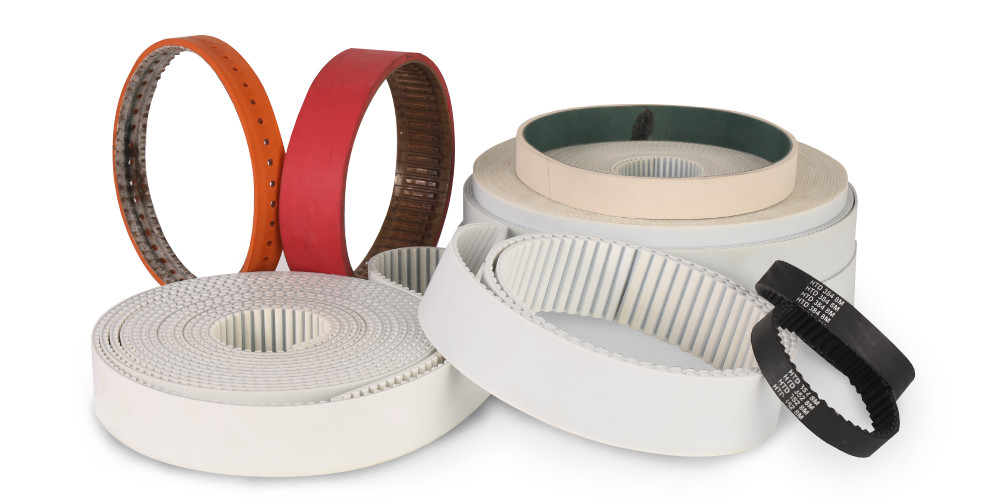

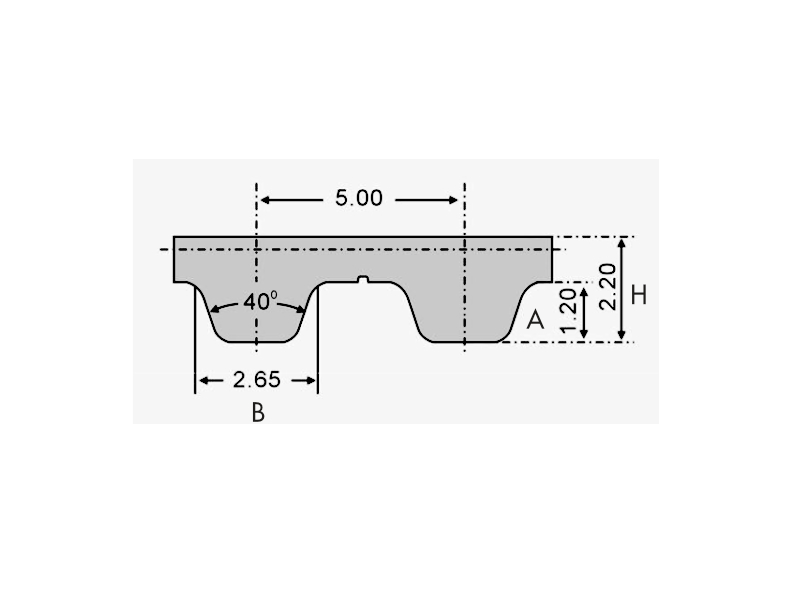

T5
| Pitch (mm) | 5 |
| Angel (degree) | 40 |
| H (mm) | 2.20 |
| A (mm) | 1.20 |
| B (mm) | 2.65 |
| Minimum No. teeth of Pulley (mm) | 10 ( without back bending ) 20 ( without back bending ) |
| Minimum Pulley (mm) | 30 |

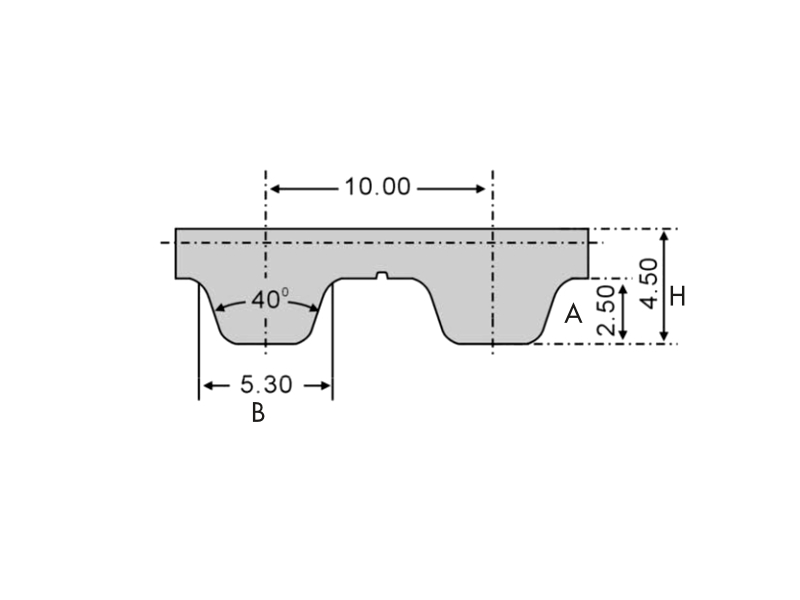

T10
| Pitch (mm) | 10 |
| Angel (degree) | 40 |
| H (mm) | 4.50 |
| A (mm) | 2.50 |
| B (mm) | 5.30 |
| Minimum No. teeth of Pulley (mm) | 12 ( without back bending ) 20 ( without back bending ) |
| Minimum Pulley (mm) | 60 |

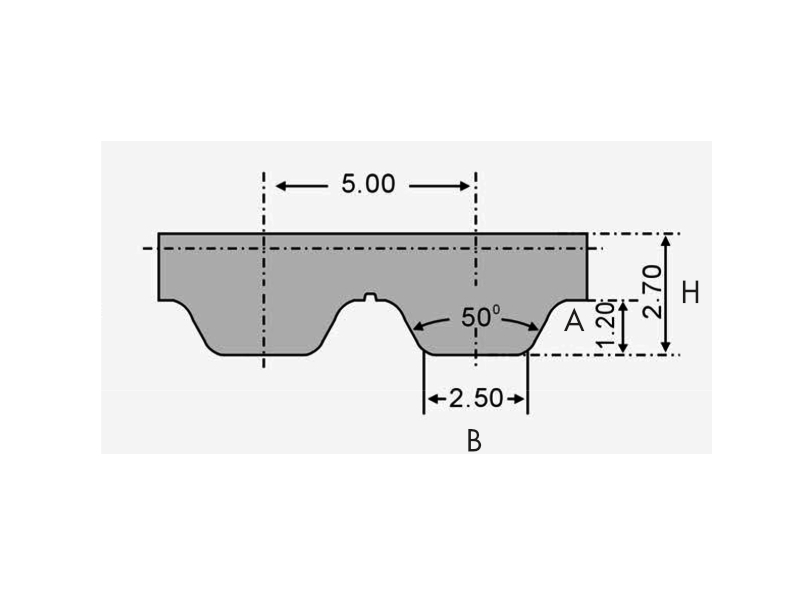

AT5
| Pitch (mm) | 5 |
| Angel (degree) | 50 |
| H (mm) | 2.70 |
| A (mm) | 1.20 |
| B (mm) | 2.50 |
| Minimum No. teeth of Pulley (mm) | 15 ( without back bending ) 20 ( without back bending ) |
| Minimum Pulley (mm) | 25 mm ( running on tooth ) 60 mm ( running on back ) |

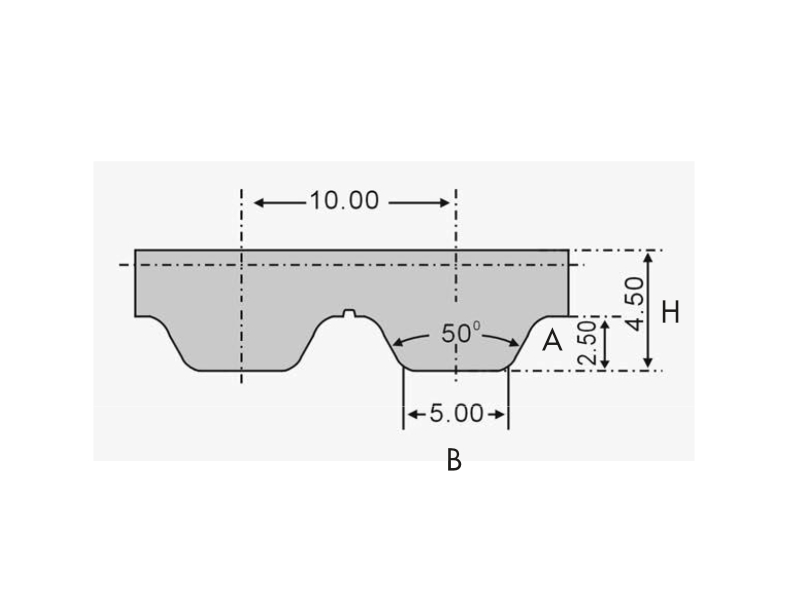

AT10
| Pitch (mm) | 10 |
| Angel (degree) | 50 |
| H (mm) | 4.50 |
| A (mm) | 2.50 |
| B (mm) | 5.00 |
| Minimum No. teeth of Pulley (mm) | 15 ( without back bending ) 20 ( without back bending ) |
| Minimum Pulley (mm) | 50 mm ( running on tooth ) 120 mm ( running on back ) |

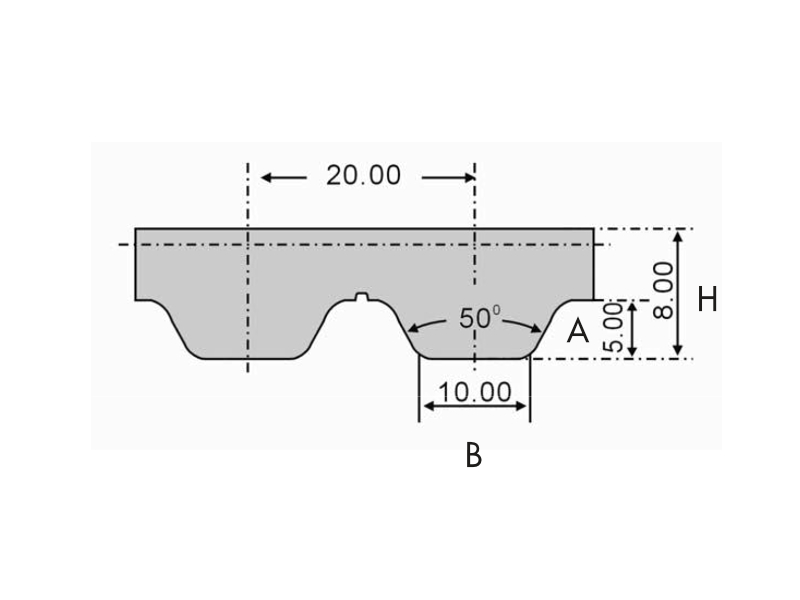

AT20
| Pitch (mm) | 20 |
| Angel (degree) | 50 |
| H (mm) | 8.00 |
| A (mm) | 5.00 |
| B (mm) | 10.00 |
| Minimum No. teeth of Pulley (mm) | 18 ( without back bending ) 25 ( without back bending ) |
| Minimum Pulley (mm) | 120 mm ( running on tooth ) 180 mm ( running on back ) |

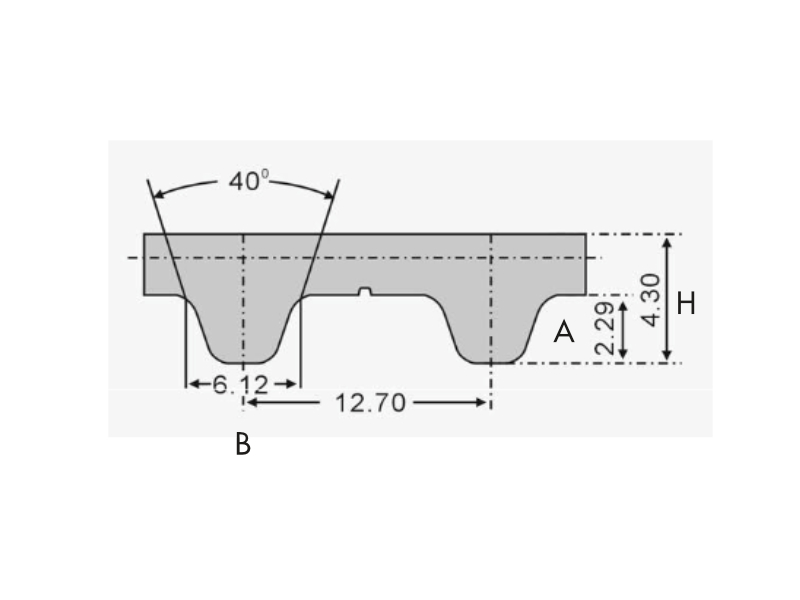

H
| Pitch (mm) | 12.7 |
| Angel (degree) | 40 |
| H (mm) | 4.30 |
| A (mm) | 2.29 |
| B (mm) | 6.12 |
| Minimum No. teeth of Pulley (mm) | 14 ( without back bending ) 20 ( without back bending ) |
| Minimum Pulley (mm) | 60 mm ( running on tooth ) 80 mm ( running on back ) |

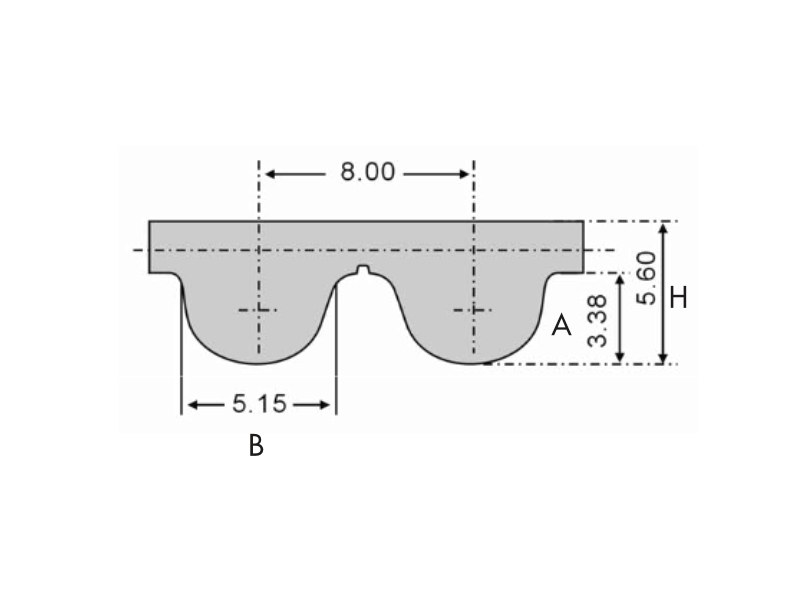

HTD8M
| Pitch (mm) | 8 |
| Angel (degree) | n/a |
| H (mm) | 5.60 |
| A (mm) | 3.38 |
| B (mm) | 5.15 |
| Minimum No. teeth of Pulley (mm) | 20 ( without back bending ) 22 ( without back bending ) |
| Minimum Pulley (mm) | 50 mm ( running on tooth ) 100 mm ( running on back ) |

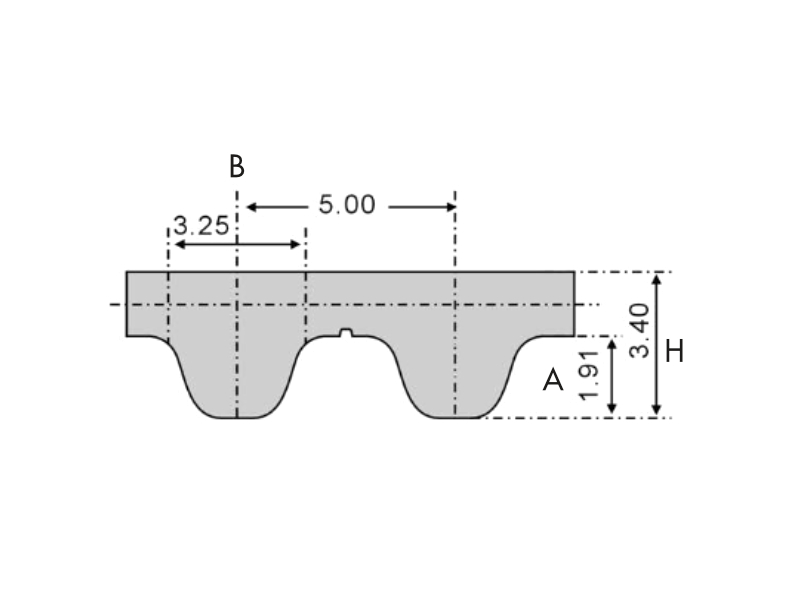

S5M
| Pitch (mm) | 5 |
| Angel (degree) | n/a |
| H (mm) | 3.40 |
| A (mm) | 1.91 |
| B (mm) | 3.25 |
| Minimum No. teeth of Pulley (mm) | 12 ( without back bending ) 13 ( without back bending ) |
| Minimum Pulley (mm) | 20 mm ( running on tooth ) 60 mm ( running on back ) |

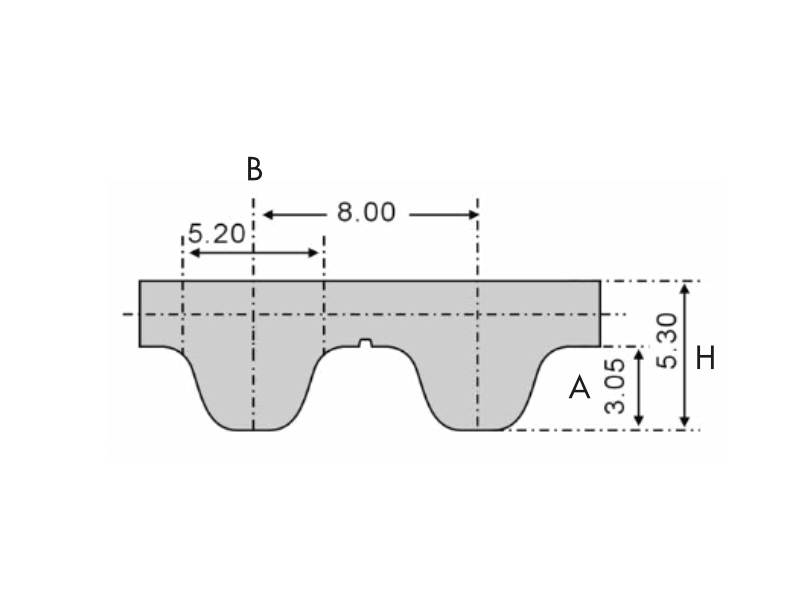

S8M
| Pitch (mm) | 8 |
| Angel (degree) | n/a |
| H (mm) | 5.30 |
| A (mm) | 3.05 |
| B (mm) | 5.20 |
| Minimum No. teeth of Pulley (mm) | 20 ( without back bending ) 24 ( without back bending ) |
| Minimum Pulley (mm) | 50 mm ( running on tooth ) 100 mm ( running on back ) |

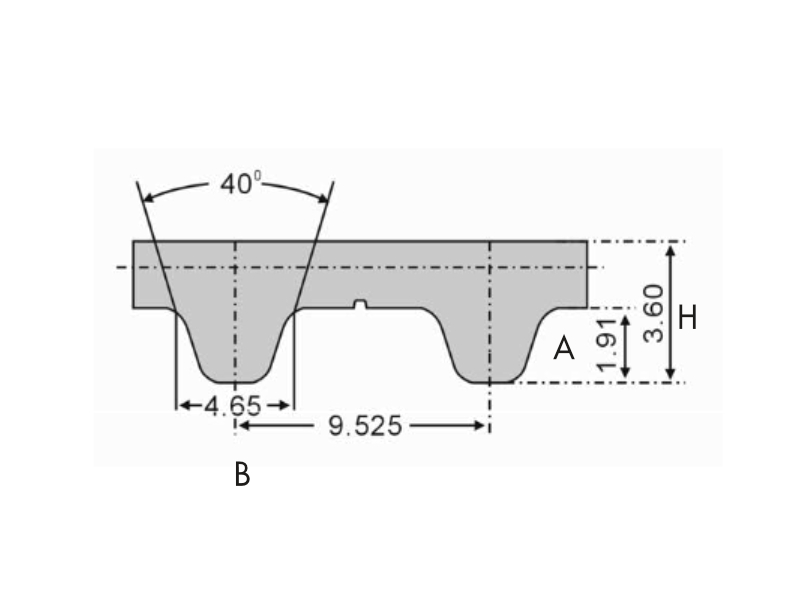

L
| Pitch (mm) | 9.525 |
| Angel (degree) | 40 |
| H (mm) | 3.60 |
| A (mm) | 1.91 |
| B (mm) | 4.65 |
| Minimum No. teeth of Pulley (mm) | 15 ( without back bending ) 20 ( without back bending ) |
| Minimum Pulley (mm) | 60 |
